What is FFT ? : A Short Intro to the Fast Fourier Transform

The Fast Fourier Transform (FFT) is an algorithm that computes the Discrete Fourier Transform (DFT) of a sequence or its inverse. In simpler terms, FFT takes a signal in the time domain and converts it into the frequency domain. This process helps you analyze the signal's frequency components more easily.

In many electrical engineering tasks, especially when working with oscilloscopes or other testing equipment, analyzing a signal’s frequency components can provide crucial insights.

Whether you’re dealing with noise, harmonics, or signal interference, FFT allows you to pinpoint the exact frequencies at play.

• Signal processing: FFT is widely used in digital signal processing (DSP) to analyze, filter, and modify signals.
• Spectrum analysis: Engineers use FFT to perform spectrum analysis, helping them to identify frequencies that may affect performance or signal integrity.
• Communications: FFT helps in the analysis of modulated signals, making it vital in fields like telecommunications.
• Audio and speech processing: FFT is used to compress audio, analyze voice signals, and eliminate noise.

Understanding how FFT works is key to unlocking the full potential of frequency domain analysis. Let’s break down the process step-by-step to see how you can move from raw signal data to a clear frequency spectrum.

The process starts by sampling the signal in the time domain. This step involves capturing a series of data points that represent the signal's amplitude at regular intervals, known as the sampling rate.

The sampling rate is critical because it determines how accurately you can reconstruct the signal in the frequency domain. According to the Nyquist Theorem, the sampling rate must be at least twice the highest frequency component of the signal to avoid aliasing (a form of distortion caused by undersampling).
For example, if you are analyzing an audio signal with a maximum frequency of 10 kHz, your sampling rate should be at least 20 kHz.

Sampling converts the continuous-time signal into discrete time points, making it ready for digital processing. The higher the sampling rate, the more data points you’ll have, and the more higher-frequency information your frequency spectrum will contain

Once you have the time-domain samples, you apply the Fast Fourier Transform (FFT) algorithm. FFT is an optimized version of the Discrete Fourier Transform (DFT), which computes the frequency components of a signal much faster, especially for large datasets.

Here’s what happens during this step:

• The FFT algorithm decomposes the time-domain signal into sine and cosine waves of different frequencies.
• These sine and cosine waves are compared against your original signal to calculate the amplitude and phase for each frequency component.
• The algorithm performs this decomposition using a series of complex multiplications and additions, breaking the signal down into its constituent frequencies.

The beauty of FFT is its speed. Instead of processing the data point-by-point like DFT, FFT uses a divide-and-conquer approach to break the computation into smaller, more manageable parts, which reduces the computational complexity from O(N2) to O(N log N).

Once the FFT algorithm finishes its work, you’re left with a frequency spectrum. This spectrum shows you how the energy of the signal is distributed across different frequencies.

Each point in the spectrum corresponds to a specific frequency, and its value represents the amplitude (or power) of that frequency component within the original signal.

The frequency spectrum is typically represented as a plot, with frequency on the x-axis and amplitude on the y-axis. Peaks in the plot indicate dominant frequencies within the signal.

For example, if you’re analyzing a complex waveform containing multiple frequencies, the FFT will allow you to see which frequencies contribute the most energy to the signal.

The shift from the time domain to the frequency domain gives you a new perspective on the signal. While the time-domain shows how the signal varies over time, the frequency-domain highlights the individual frequency components that combine to form the overall signal.

This can be incredibly useful for tasks like noise filtering, harmonic analysis, and signal modulation analysis, where the time-domain view alone doesn’t offer enough clarity.

Example:

Consider a signal composed of two sine waves: one at 50 Hz and another at 200 Hz. In the time domain, these two waves would partially overlap, making it difficult to discern their individual frequencies.

However, after applying FFT, you would clearly see two peaks in the frequency spectrum at 50 Hz and 200 Hz, with corresponding amplitudes representing the strength of each sine wave.

Knowing when to use FFT can help streamline your signal analysis workflow and provide critical insights into the behavior of your signals. The FFT algorithm is particularly useful in scenarios where analyzing the frequency content of a signal offers more actionable information than a simple time-domain view. Here are a few key situations where FFT can prove invaluable:

• Noise identification: If you encounter noise in a signal, the time-domain view may not clearly reveal its source or nature. By applying FFT, you can see the frequency spectrum and pinpoint the specific frequency bands where the noise is occurring. This allows you to design filters or take corrective actions to suppress the unwanted frequencies, improving signal clarity.
• Harmonic analysis: Periodic signals often consist of a fundamental frequency along with harmonics, which are integer multiples of that frequency. FFT helps you separate the fundamental from its harmonics, allowing you to measure their relative strengths. This is particularly useful in power systems, motor control, and audio signal processing, where harmonic distortion can affect performance.
• Modulation analysis: In communication systems, signals are often modulated, meaning their characteristics are altered to carry information. FFT allows you to break down these modulated signals into their carrier and sideband frequencies, helping you study the modulation scheme and diagnose any distortions or issues that could affect signal integrity.
• Filter design and validation: When designing or testing filters, FFT can help you visualize how effectively your filter suppresses unwanted frequencies while allowing desired frequencies to pass through. This gives you the ability to fine-tune your filter for optimal performance in real-world conditions.
• System diagnosis: For diagnosing issues in complex systems, such as mechanical vibrations or power distribution networks, FFT can provide a frequency-domain view of the problem. Identifying dominant frequencies in a mechanical vibration, for example, can help you trace the source of wear or imbalance in a machine.

Using FFT in these scenarios not only saves time but also offers a more in-depth understanding of the signal behavior, making it easier to make informed decisions and implement effective solutions.

• Speed: FFT is much faster than the traditional DFT, making it practical for real-time applications.
• Efficiency: FFT allows you to handle large datasets efficiently, which is useful when dealing with high-resolution signals.
• Versatility: FFT works in a wide range of applications, from audio signal processing to vibration analysis in mechanical systems.

• Resolution: The frequency resolution of FFT depends on the number of data points and the sampling rate. You may need to balance time resolution with frequency resolution.
• Windowing: Applying FFT to a non-periodic signal without windowing may introduce artifacts like spectral leakage, which can distort the frequency analysis.

FFT is a powerful tool integrated into many modern testing instruments like oscilloscopes, spectrum analyzers, and data acquisition systems. By converting time-domain signals into the frequency domain, FFT allows you to visualize and analyze the frequency components of a signal in real-time, making it easier to diagnose and troubleshoot complex issues.

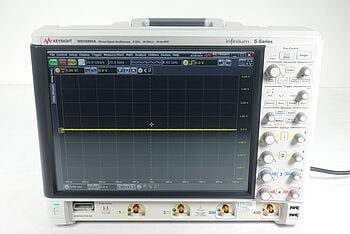

For instance, in digital oscilloscopes, the FFT function allows you to quickly switch between time and frequency domains. With just a few button presses, you can overlay the frequency spectrum onto the time-domain signal, helping you identify issues like noise, harmonic distortion, or signal interference. This feature is especially useful when working on real-time systems, where time-critical analysis is necessary.

Spectrum analyzers also rely heavily on FFT for capturing and displaying frequency spectra over a wide range of signals, from RF to audio. The FFT algorithm allows these analyzers to process large amounts of data efficiently, giving you a detailed view of signal behavior over time, with the ability to pinpoint specific frequency anomalies.

Data acquisition systems (DAQs) often use FFT in post-processing to help engineers analyze frequency responses in mechanical vibrations, structural testing, or acoustics. This provides a deeper understanding of system performance and ensures that signals stay within acceptable parameters.
