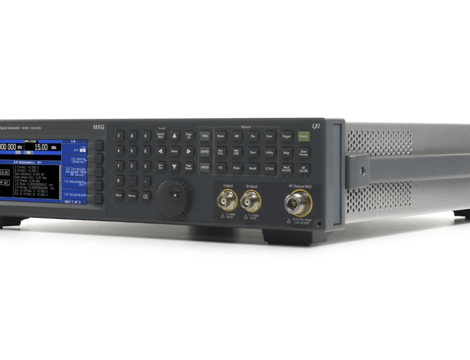

Quick Delivery, Project Success, Innovation You Can TrustKeysight Used N5182B RF Vector Signal Generator: High Performance, Precision Results
Key Specifications
Frequency ranges
9 kHz to 6 GHz
Phase noise at 1 GHz, 20 kHz offset
–146 dBc/Hz
Spurious at 1 GHz (nonharmonics)
–96 dBc
Output power at 1 GHz
+27 dBm
Bandwidth (vector)
160 MHz
Experience the Versatility of the N5182B MXG X-Series RF Vector Signal Generator
Frequency Versatility: Spanning a wide frequency range from 9 kHz to 6 GHz, this generator allows for extensive testing and development opportunities with unmatched phase noise and dynamic range.
Future-Proof Design: The N5182B is designed to meet current and future challenges, offering real-time capability and a dynamic range suitable for wideband devices.
Combine Precision and Performance with the N5182B MXG X-Series RF Vector Signal Generator
High Output Power: Delivers an output power of up to +27 dBm at 1 GHz, this generator drives power amplifiers with outstanding hardware performance, ensuring precise characterization of non-linear behavior and adjacent channel power ratio (ACPR).
Wide Bandwidth: Featuring a factory-equalized 160 MHz RF bandwidth, it tests wideband devices, providing exceptional signal creation, high signal-to-noise ratios, and phase coherency.
This upgraded configuration guarantees that the N5182B effortlessly meets even the most rigorous electronic testing demands.
