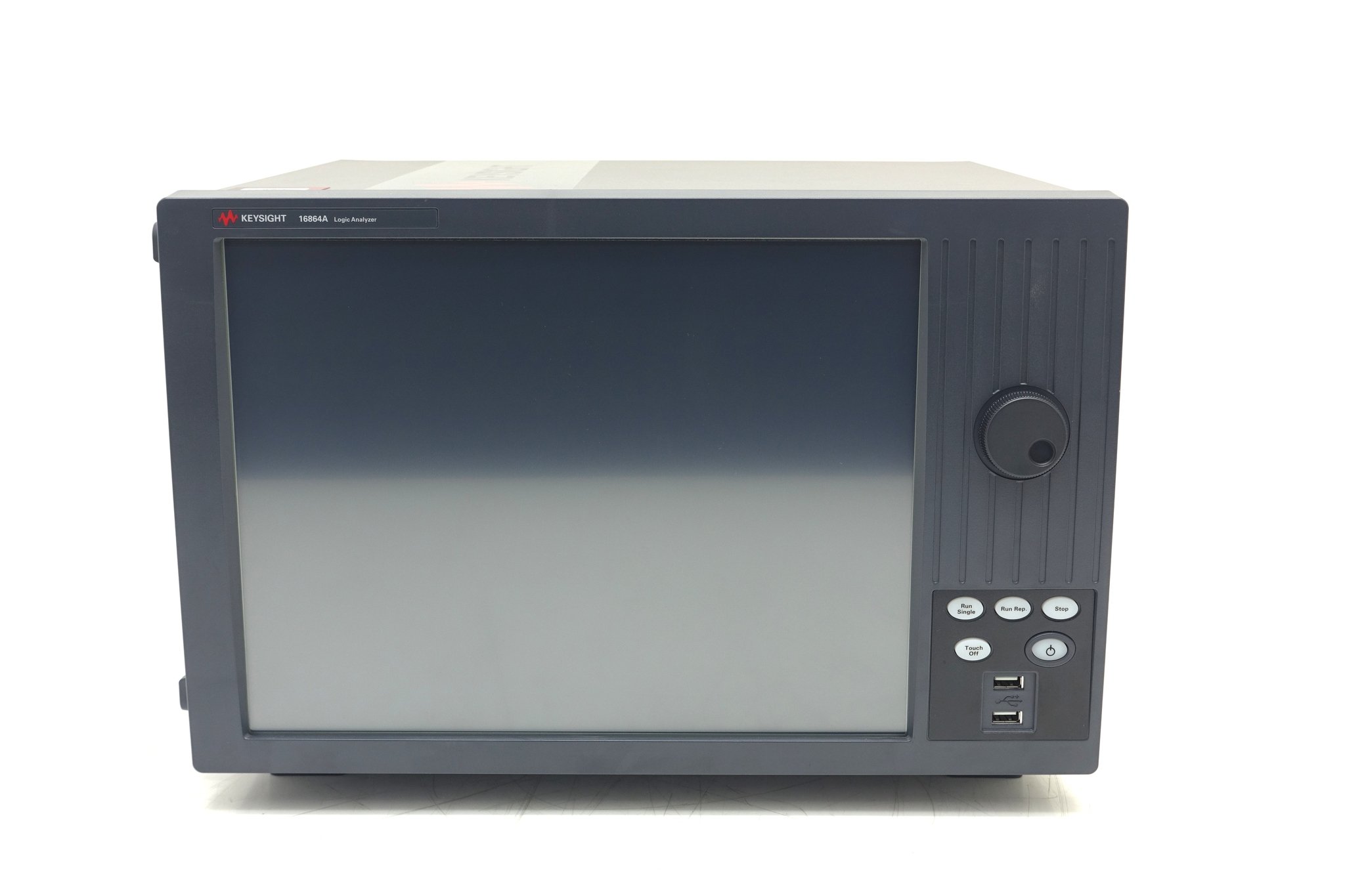

Logic analyzer configuration

• 136 channels, 350 MHz state, 12.5 GHz timing zoom, 2.5 GHz timing, 2 Mb depth standard
• 15-inch (38.1 cm) color, touch-screen display for viewing and quickly navigating large numbers of signals and buses
• built-in removable SSD drive, USB 3.0 ports, and LAN for fast data transfer and storage of large amounts of data
• 1.4 GHz trigger sequencer to ensure high-speed events are captured

Timing analysis (asynchronous sampling)

• up to 2.5 GHz / 5.0 GHz / 10GHz (full- / half- / quarter-channel) timing for capturing signal activity at high resolution
• up to 128 Mb / 256 Mb / 512Mb (full- / half- / quarter-channel) deep memory for identifying the root cause of a problem and symptom widely separated in time
• 12.5 GHz (80 ps) timing zoom with 256K memory depth for analysis of the trigger event with high resolution

State analysis (synchronous sampling)

• state data rates up to 1.4 Gb/s, state clock rates up to 700 MHz for high-speed data capture
• automated threshold / sample position setup for accurate measurements on high-speed buses
• simultaneous eye diagrams on all channels for quick identification of problem signals

Configuration considerations (probes and additional software ordered separately)

• Select from a wide variety of single-ended and differential general purpose and application-specific probes.
• Add application software for insight to debug, analyze and optimize your system’s operation.
• Purchase the speed and memory depth capability you need today and upgrade as your needs evolve. Use 16864AU to upgrade an existing 16864A.

• Keysight 16864A Data sheet
• Keysight 16864A User Manual

Accessories only included if shown in the pictures. No power cord included.

Other accessories that are not listed and included in the offer can be purchased separately at an extra cost with your purchase of a Keysight Used or Keysight Premium Used unit. Please specify in the comment field which additional accessories or support you are interested in.
