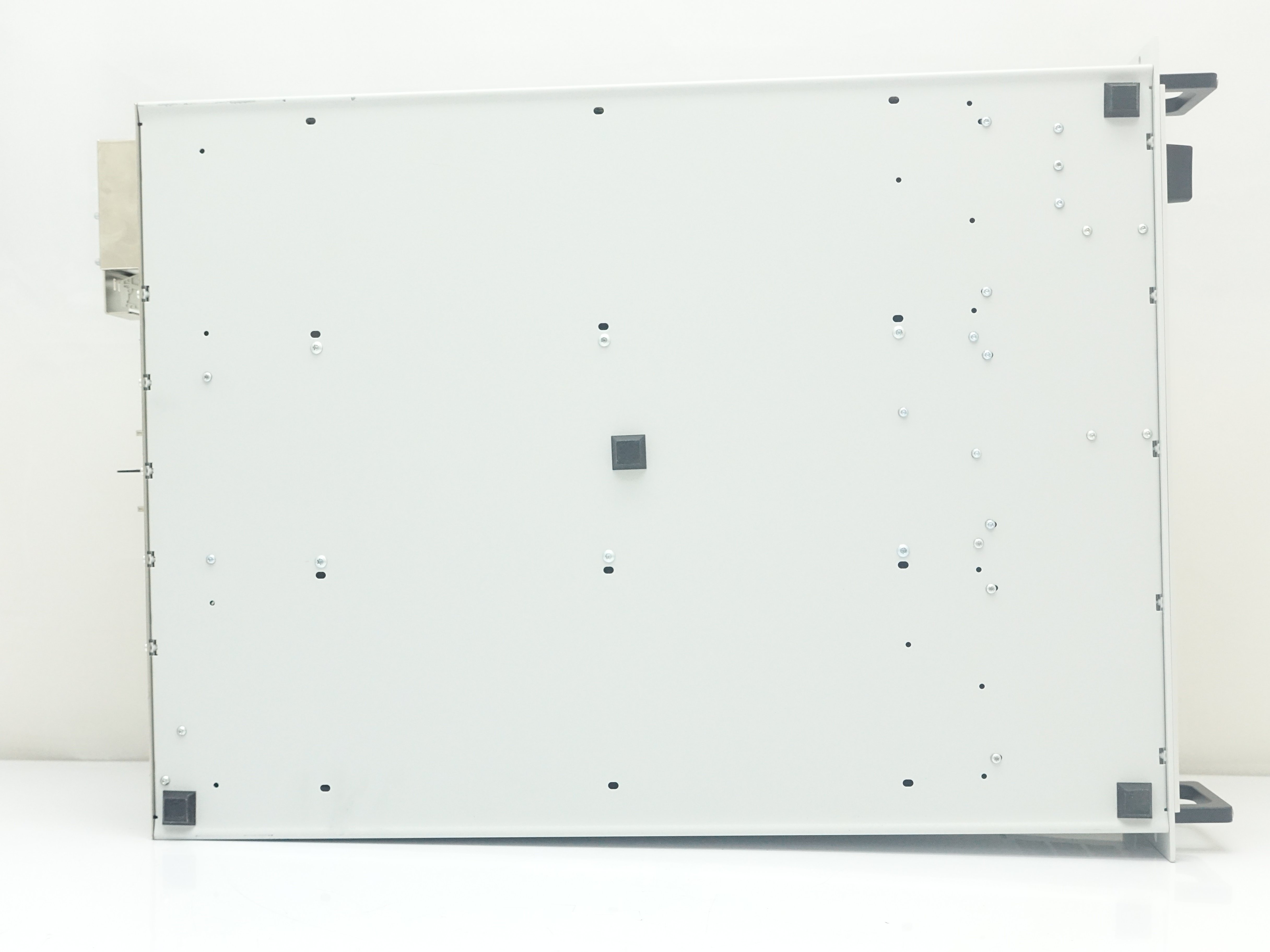

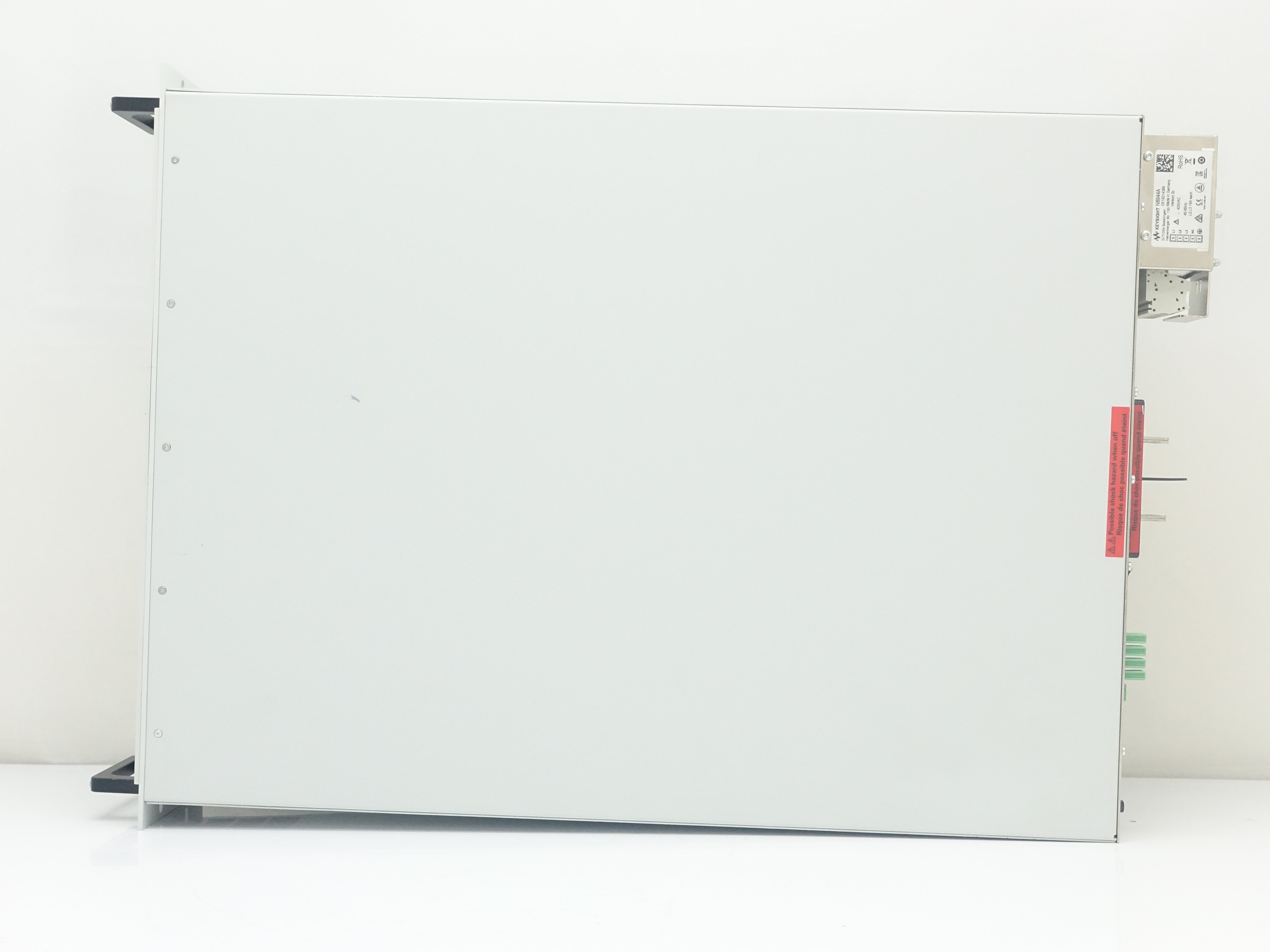

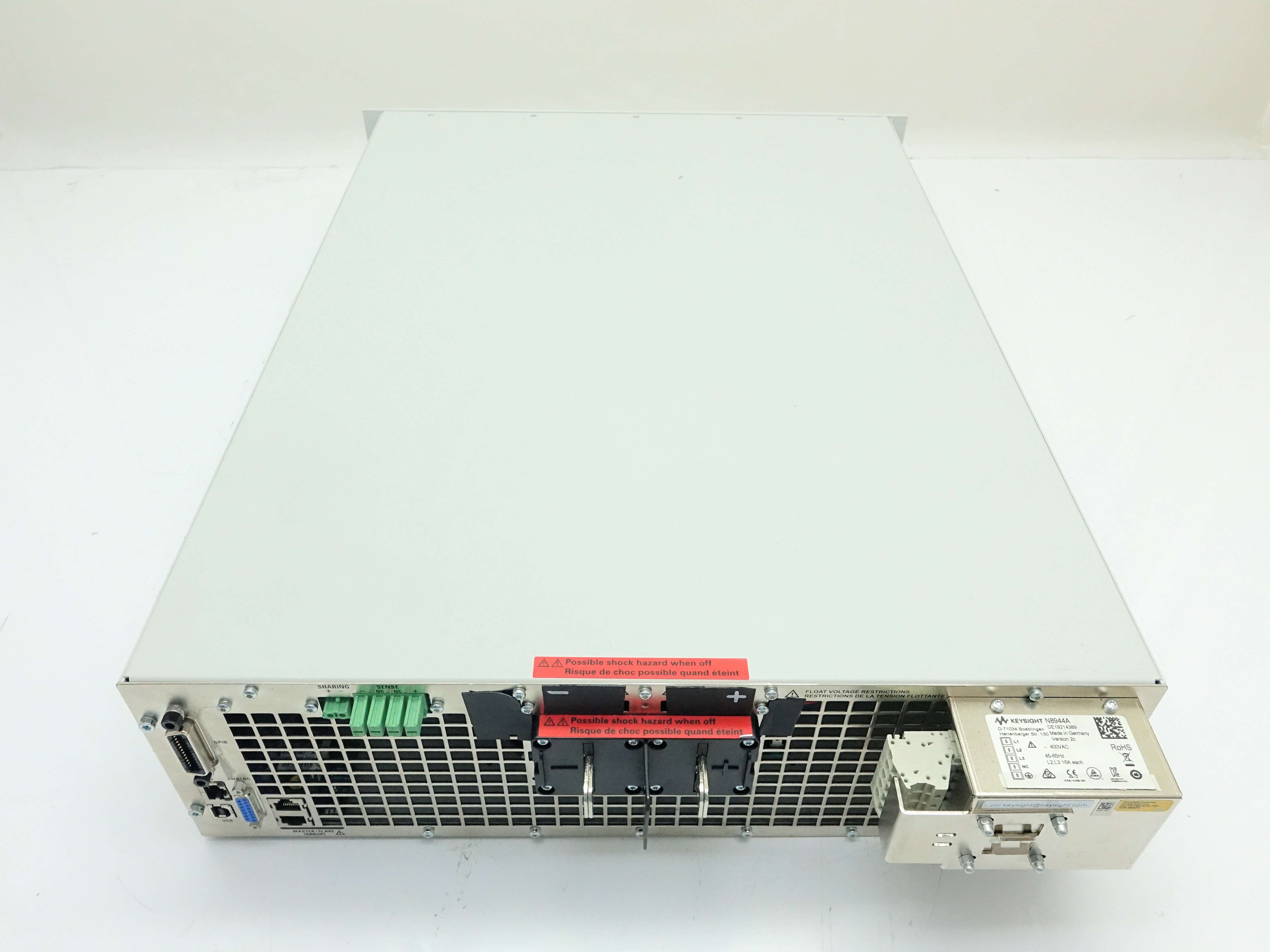

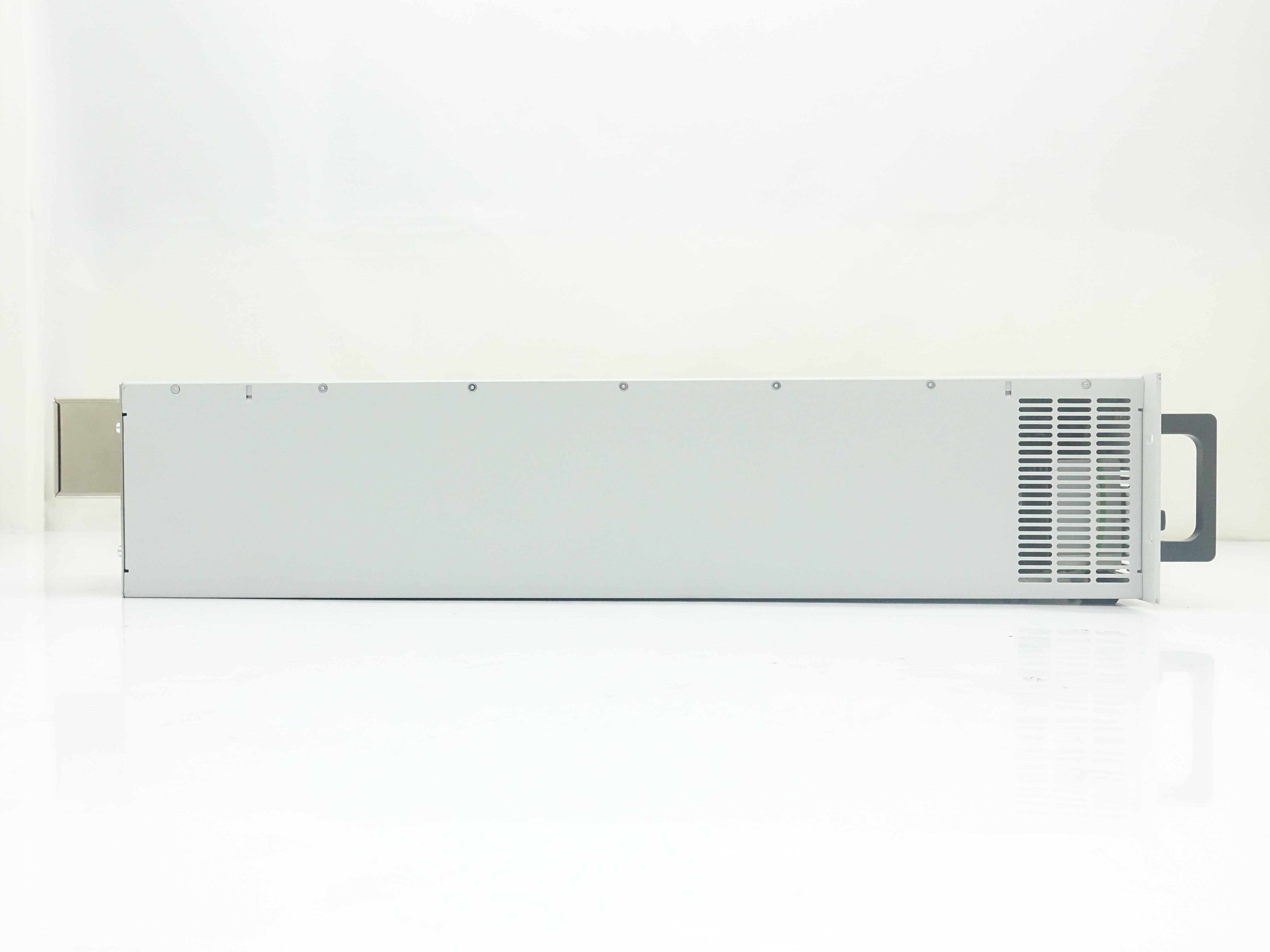

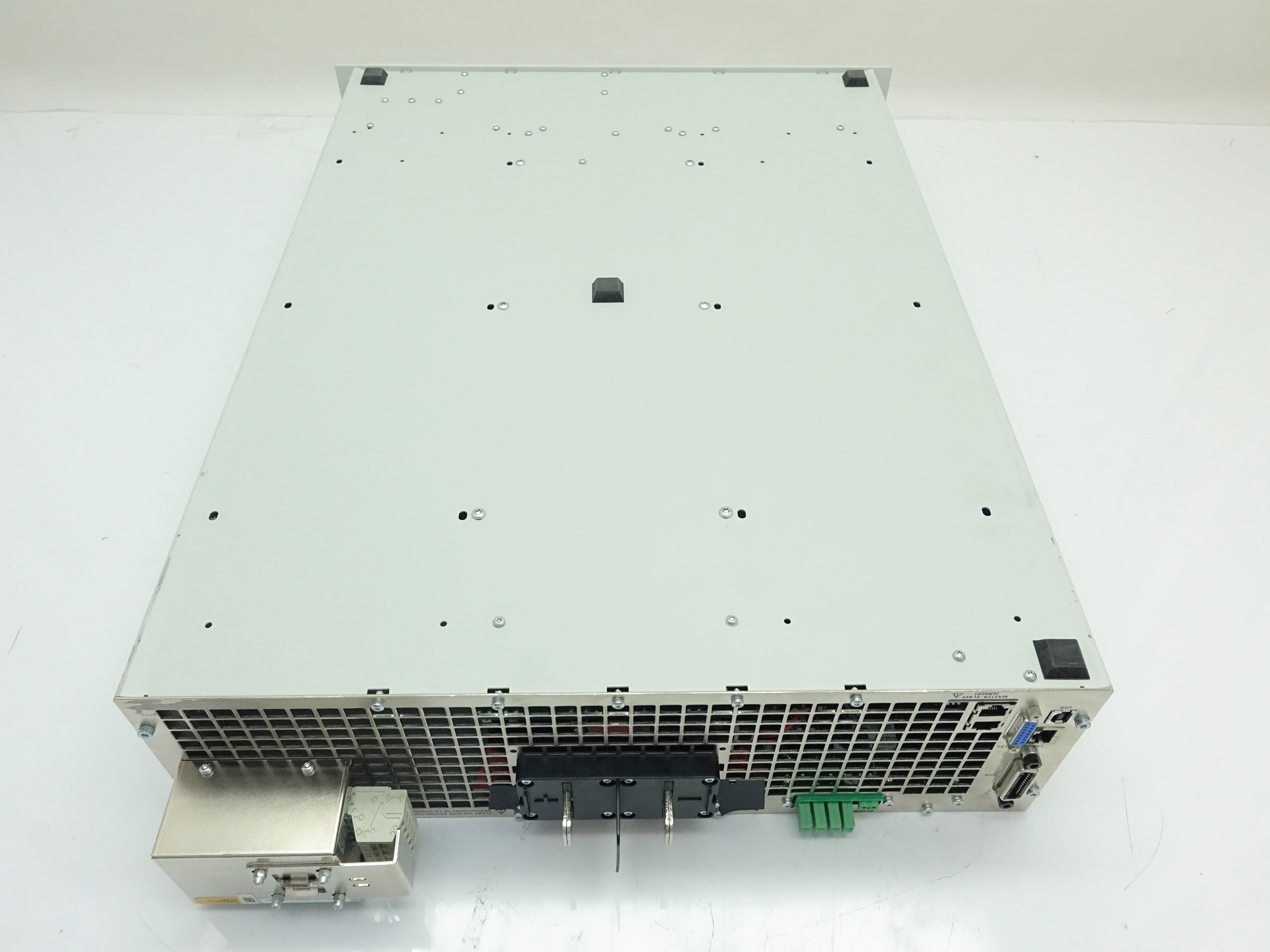

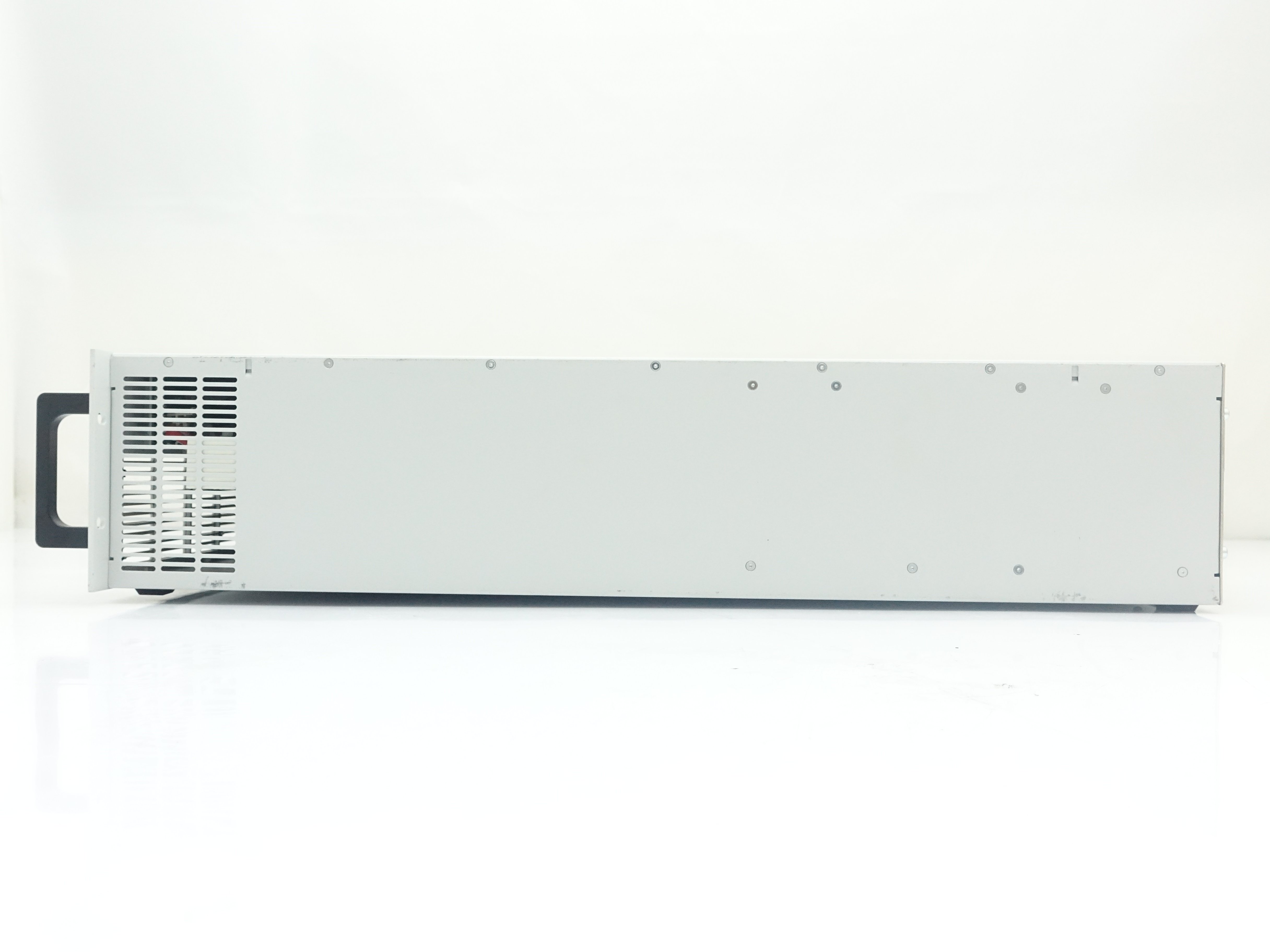

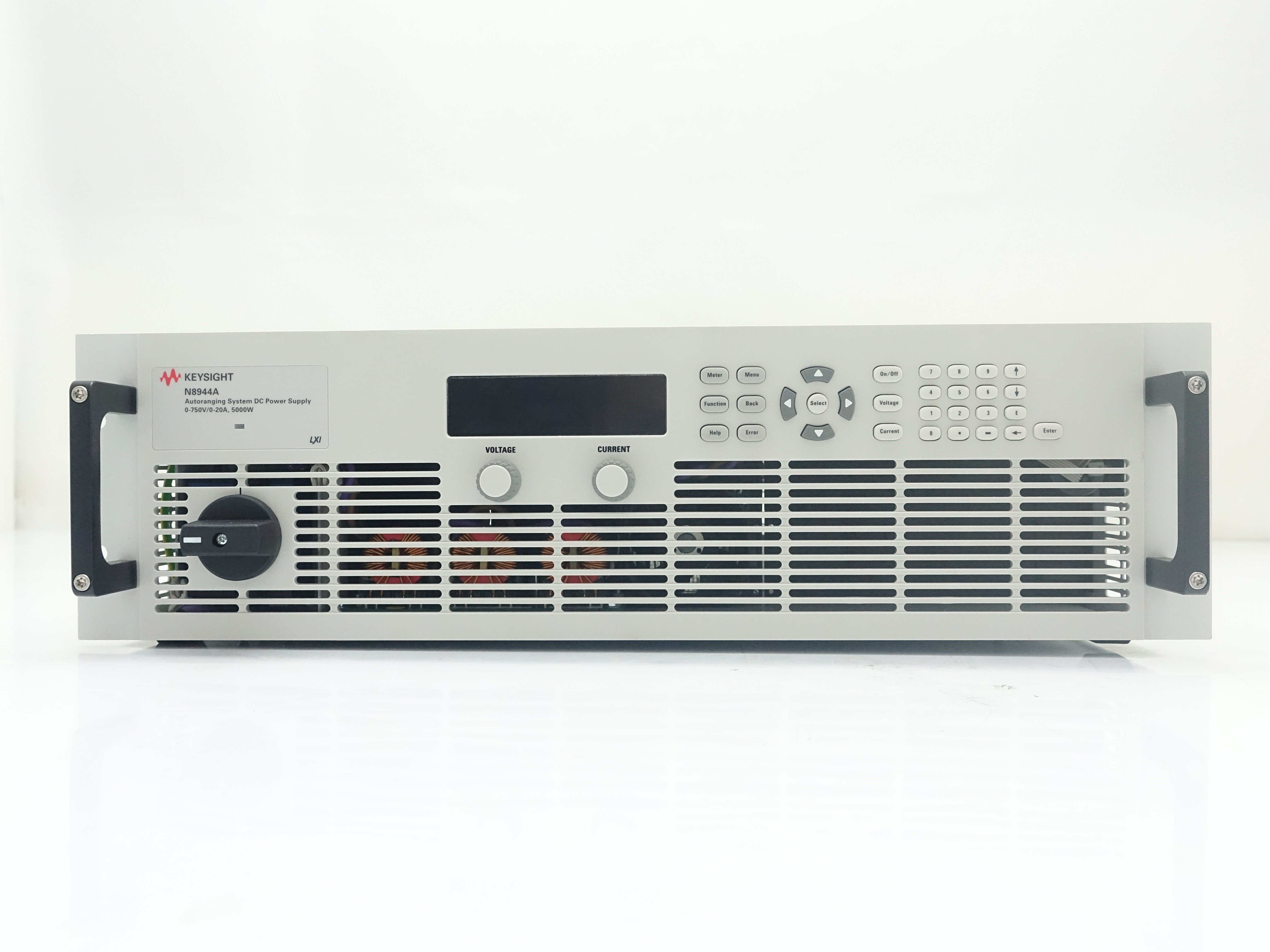

Keysight N8944A
Autoranging System DC Power Supply / 750V / 20A / 5000W / 400VAC
Keysight N8944A
Autoranging System DC Power Supply / 750V / 20A / 5000W / 400VAC
KRW 7,382,000
정가 KRW 21,091,428.57
키사이트 중고
Keysight N8944A KRW 7,382,000
From
KRW 7,382,000 65% 할인
Get peace of mind only Keysight can offer. With KeysightCare Assured and manufacturer calibration.
|

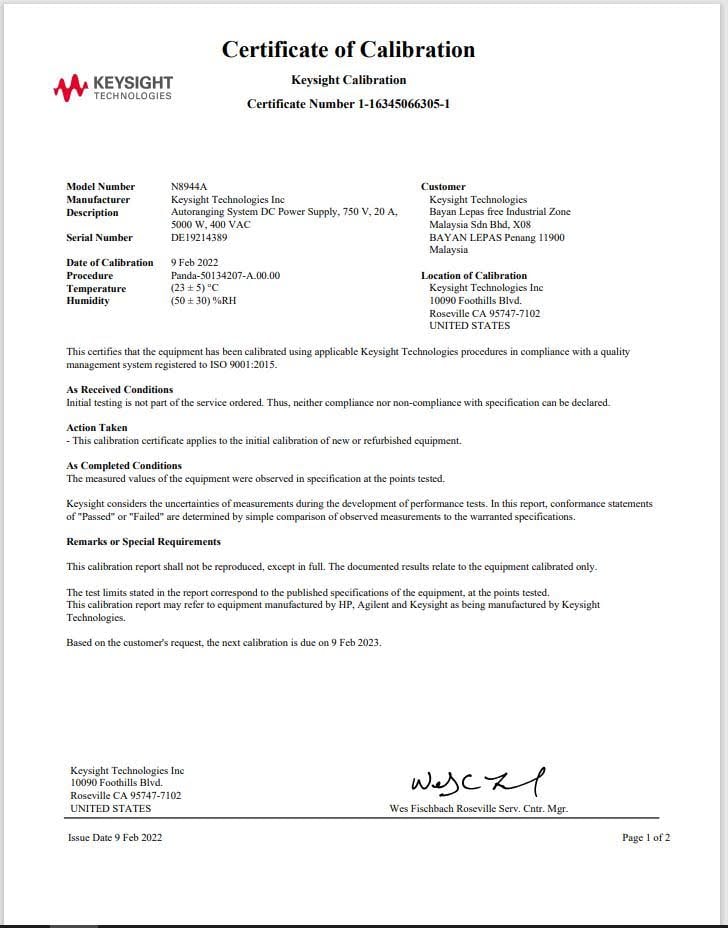

Fresh Calibration* 제품 수령까지 최대 4주 더 소요될 수 있습니다. | KRW 1,017,552 |
|
KeysightCare Assured - 1 year incl. Keysight Extended Warranty | KRW 877,020 |
|
KeysightCare Assured - 2 years incl. Keysight Extended Warranty | KRW 1,754,040 |
|
KeysightCare Assured - 3 years incl. Keysight Extended Warranty | KRW 2,631,060 |
|
KeysightCare Assured - 5 years incl. Keysight Extended Warranty | KRW 4,385,100 |
*If the unit is not yet calibrated (see listing), a calibration is required to purchase a KeysightCare plan.
DC output ratings
- Voltage: 0 to 750 V
- Current: 0 to 20 A
- Power: 5000 W
- VAC Input: 400
AC input
- Voltage range: 360 - 440 VAC
Programming accuracy
- Voltage: 0.1% of full-scale
- Current: 0.2% of full-scale
The Keysight N8900 Series provides 5 kW, 10 kW, and 15 kW autoranging, single-output programmable DC power for ATE applications that require just the right amount of performance at just the right price. The N8900 Series power supplies' autoranging output characteristic enables unprecedented flexibility by offering a wide range of voltage and current combinations at full power. Power supplies with “rectangular,” or traditional, output characteristics provide full power at only one voltage and current combination. Just one N8900 does the job of multiple power supplies. It's like having many power supplies in one!
The N8900 Series provides stable output power, built-in voltage and current measurements, and autoranging output voltage and current from 80 V to 1500 V and 10 A to 510 A. These supplies offer many system-ready features like multiple standard I/O interfaces to simplify and accelerate test-system development and compact 3U design to save rack space. If more power is required, easily parallel multiple N8900 units to create “one” power supply with >100 kW of total output power. The built-in parent/subsidiary control enables programming as if it's just one big power supply; no need to program each supply individually.
- Autoranging output – does the job of multiple power supplies!
- 5 kW, 10 kW, and 15 kW maximum output power
- Up to 1500 V and up to 510 A
- 14 different voltage, current, and power combinations available in 208 VAC or 400 VAC (28 total models)
- Just the right amount of performance at just the right price
- Easily parallel units to create “one” power supply with >100 kW of power
- Built-in voltage and current measurement
- High power density, 15 kW in only 3U (5.25” / 13.34 cm)
- Protection from over-voltage, over-current, and over-temperature
- LAN (LXI Core), USB, GPIB, and analog interfaces all standard
사진에 표시된 액세서리만 포함됩니다.
제공된 목록에 포함되지 않은 다른 액세서리는 키사이트 중고 제품 또는 키사이트 프리미엄 중고 제품의 구매 시 별도의 비용으로 구매할 수 있습니다. 추가 액세서리나 지원에 관심이 있는 경우 코멘트란에 구체적으로 명시해 주세요.
별도 또는 구매 후 주문을 원하시는 경우 귀하의 지역 키사이트 사무실이나 키사이트 파트너에 문의하십시오. 또는 귀하의 지역에서 이용 가능하다면 온라인 스토어를 확인해 주세요.
