Get peace of mind only Keysight can offer. With KeysightCare Assured and manufacturer calibration.

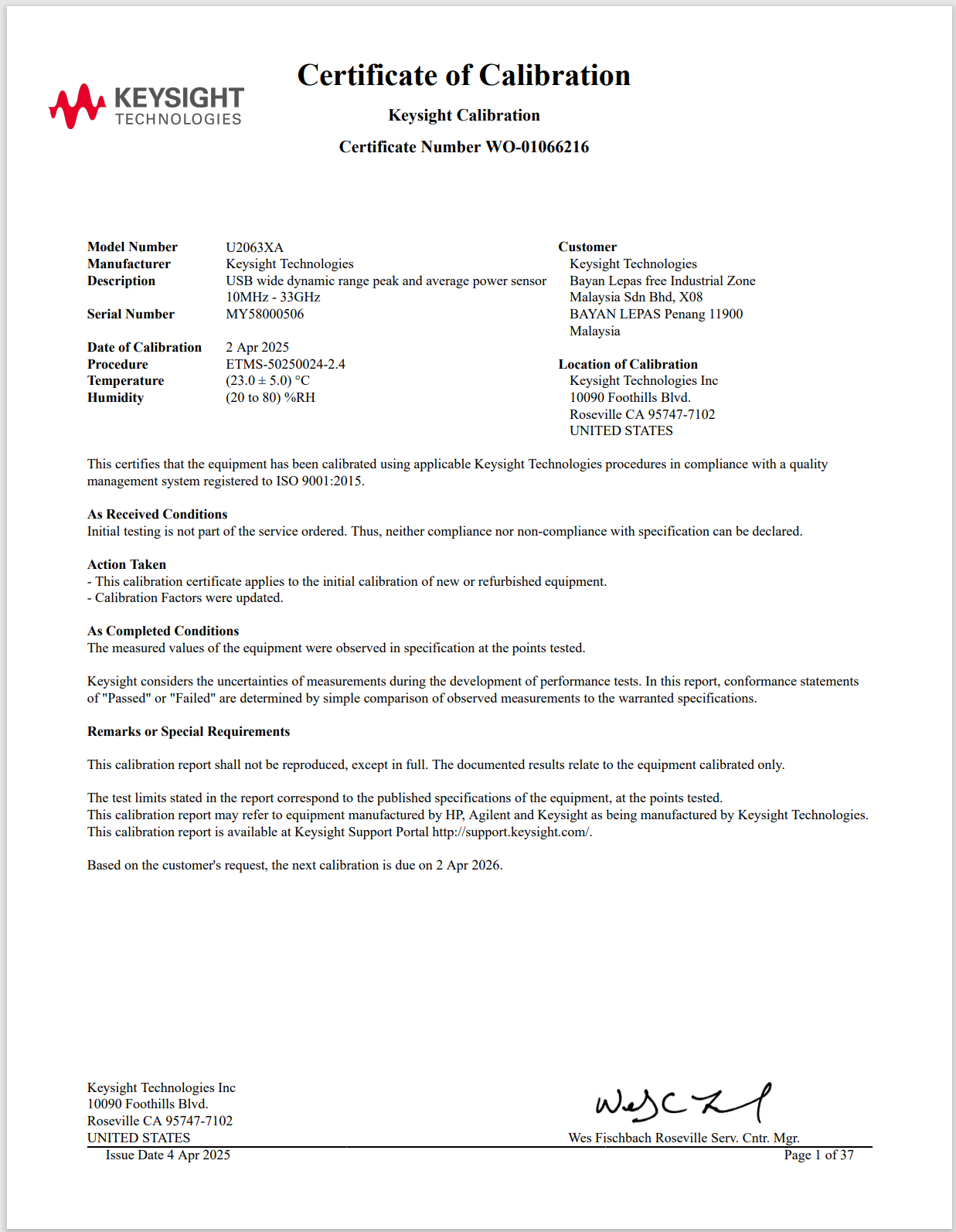

*If the unit is not yet calibrated (see listing), a calibration is required to purchase a KeysightCare plan.

• 10 MHz to 33 GHz frequency range
• USB connectivity with wide dynamic range of -70 to +26 dBm for small signal measurements
• Fast real time measurement of 50,000 readings/sec
• Variable Sampling Rate 1M samples/sec and Long Memory 1M samples data storage
• Real-time measurement with zero dead time to ensure every single continuous pulse is measured
• Average mode time-selectivity function allows full dynamic range for average and time selectivity average power measurements
• Internal zero and automatic calibration saves time and reduces measurement uncertainty

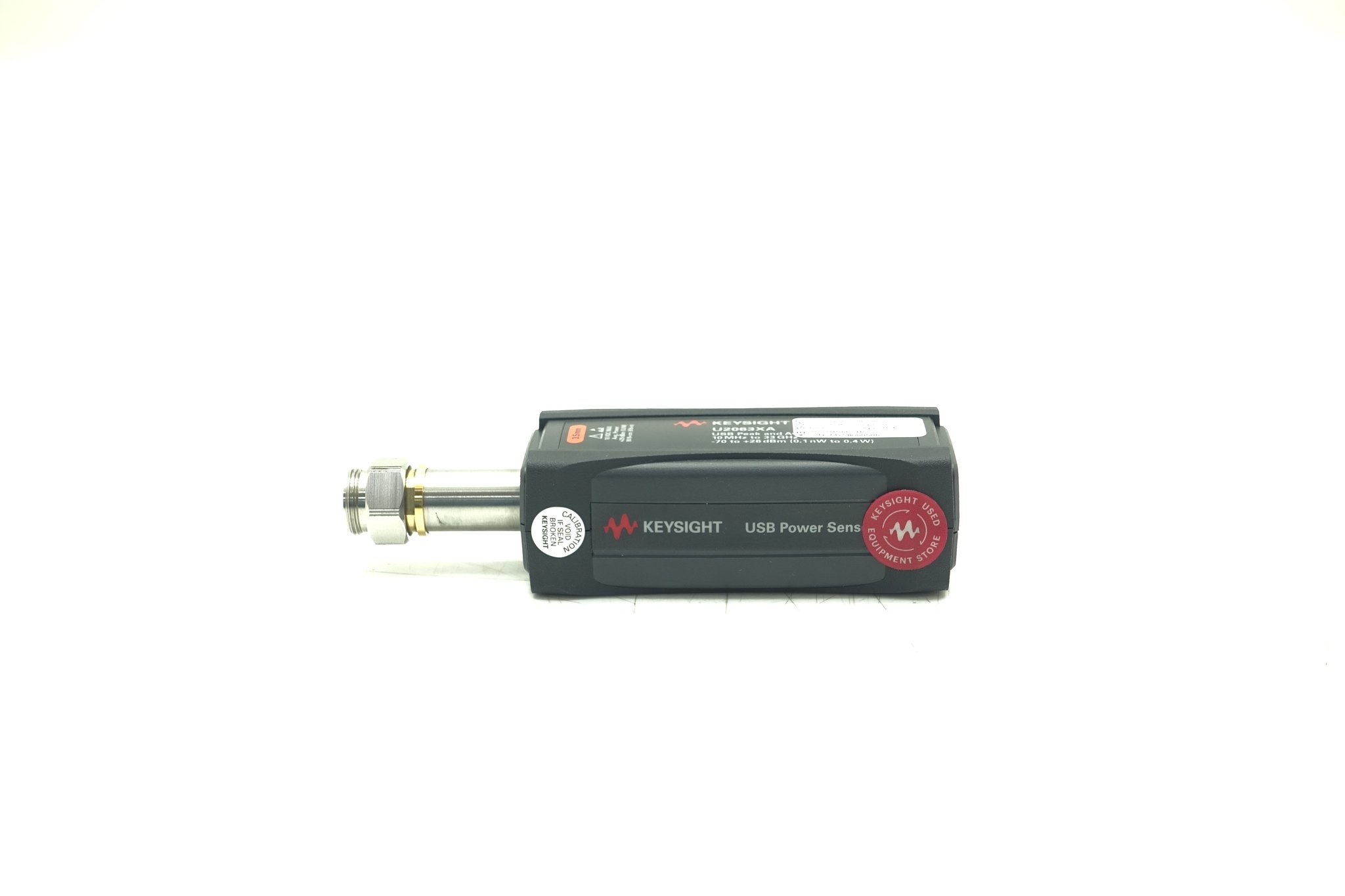

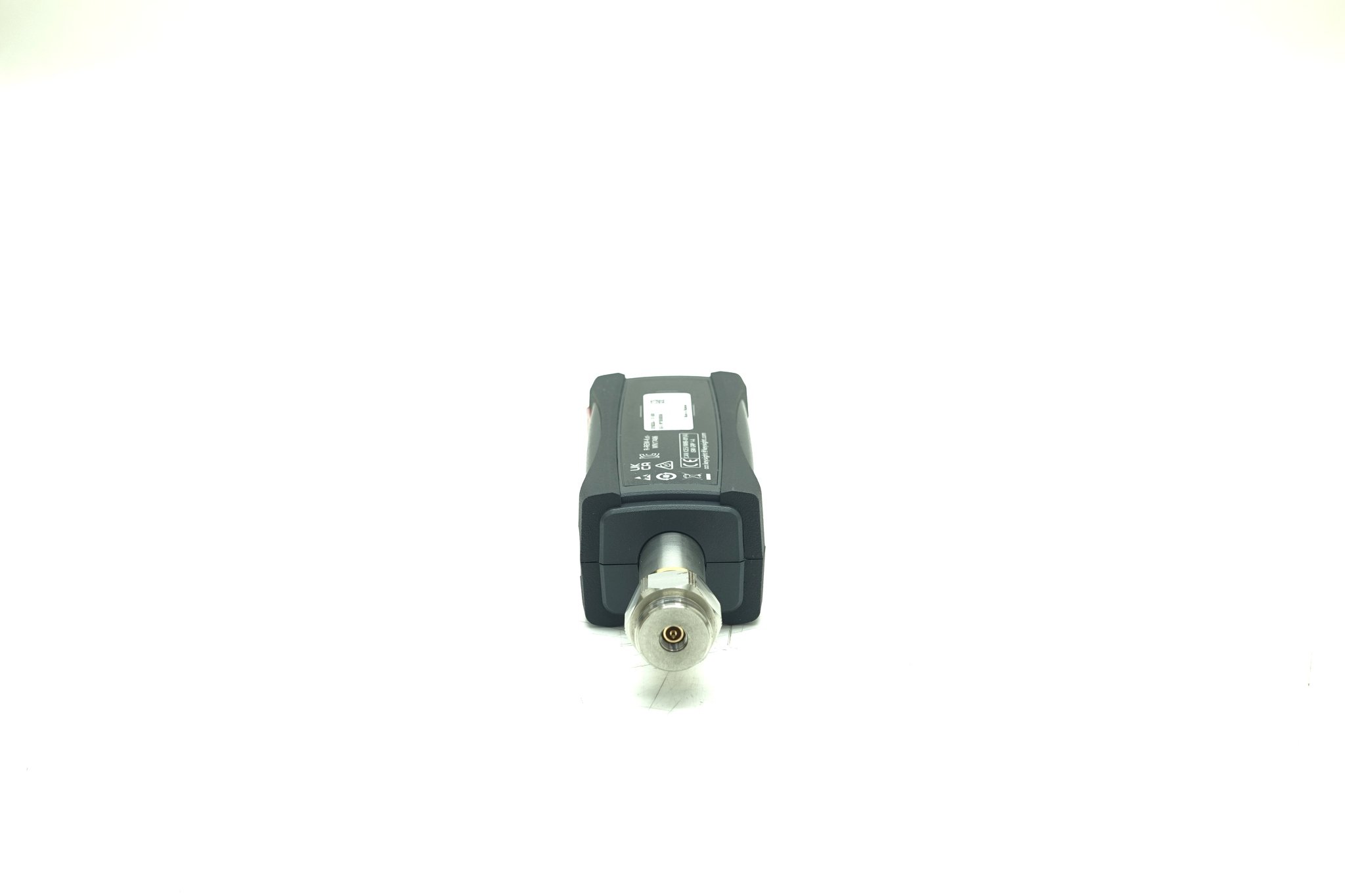

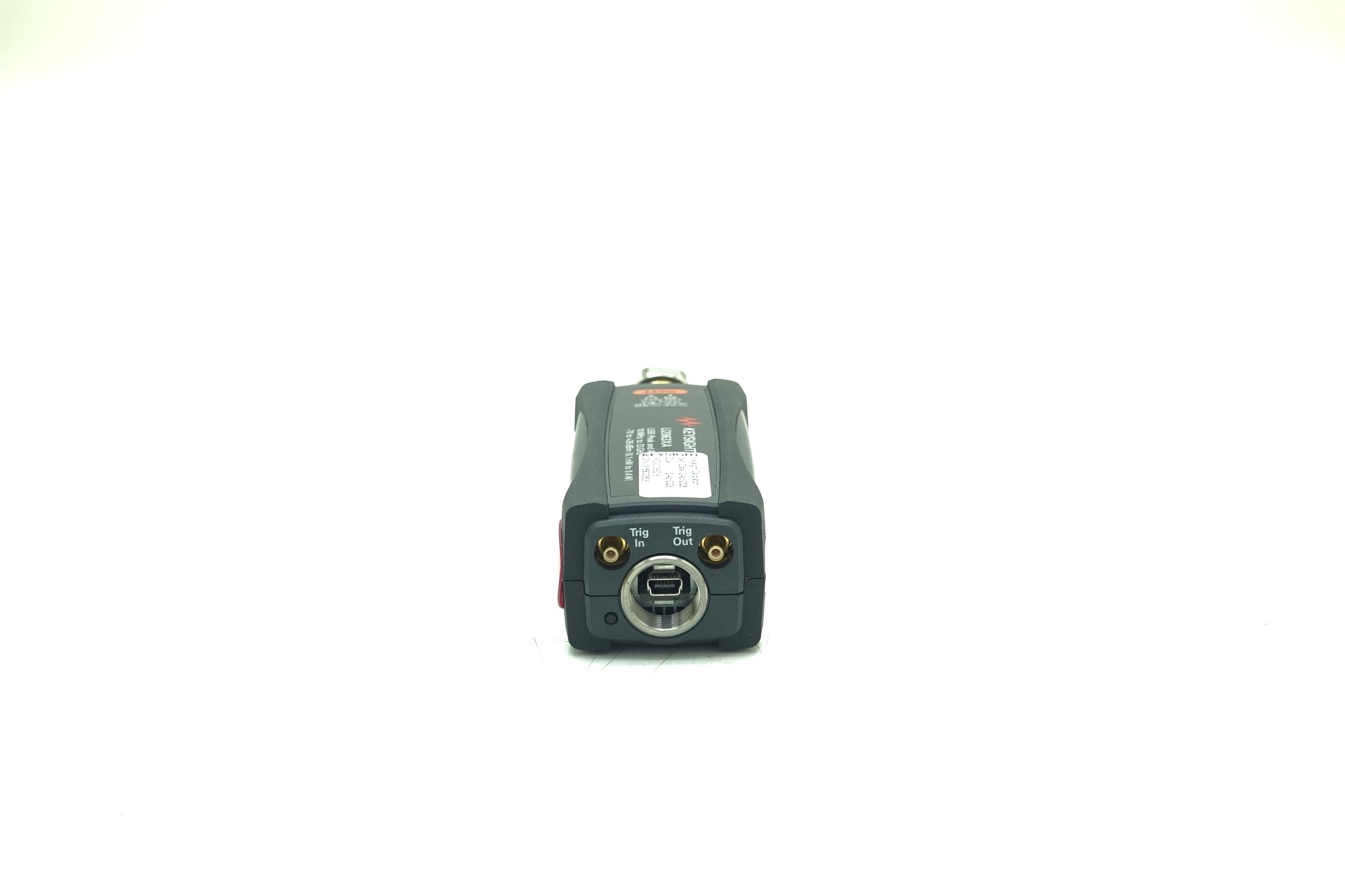

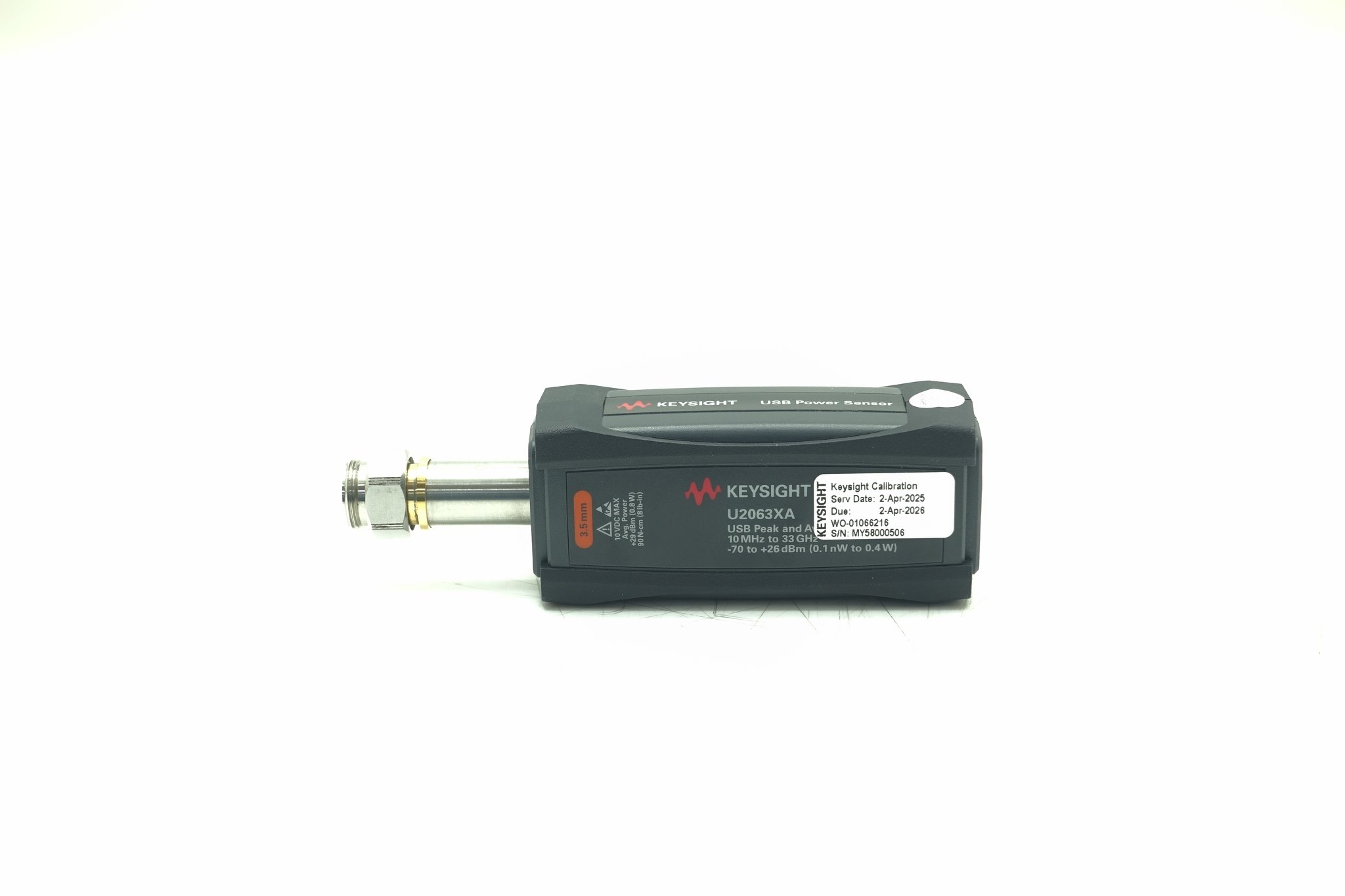

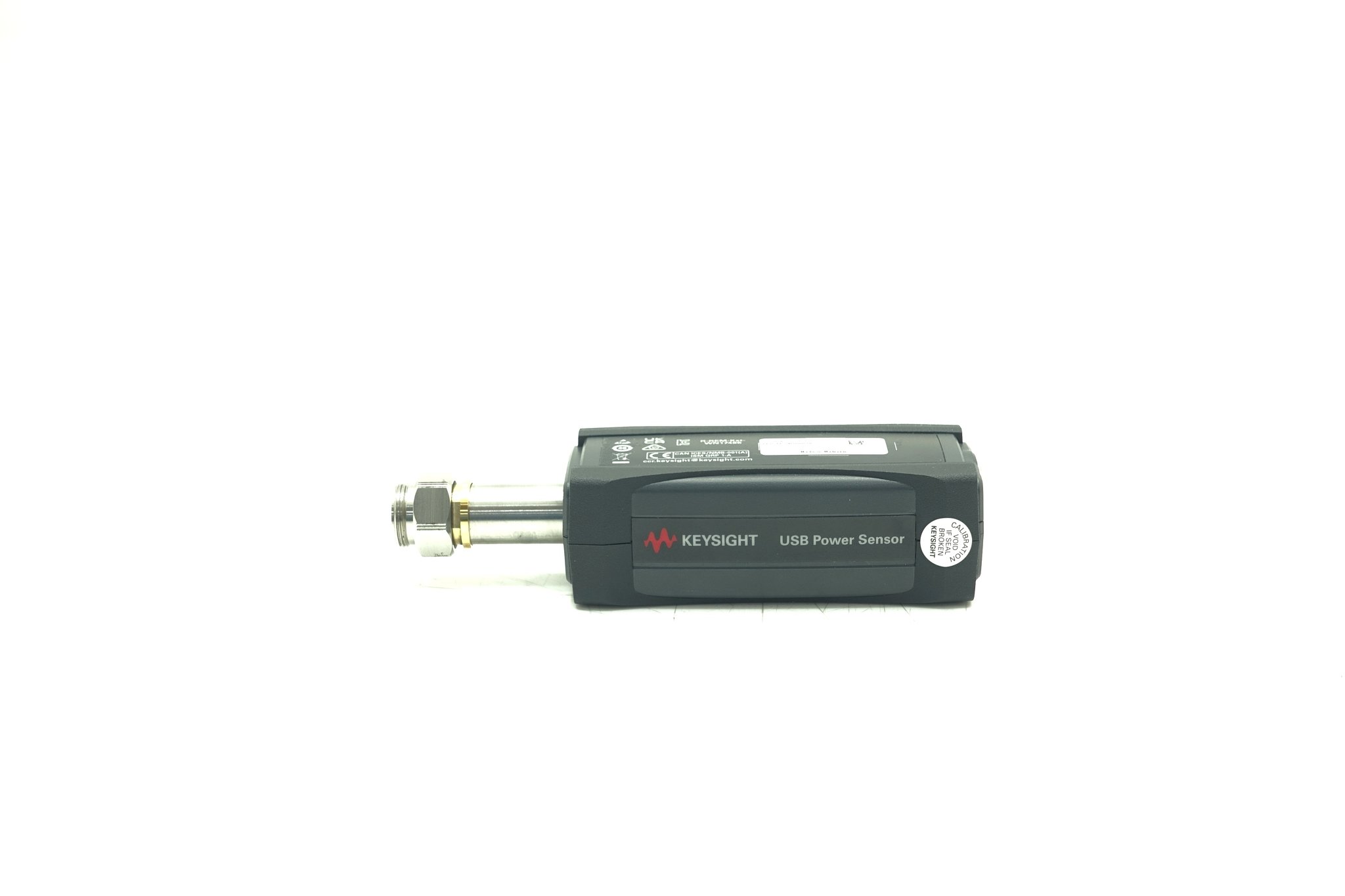

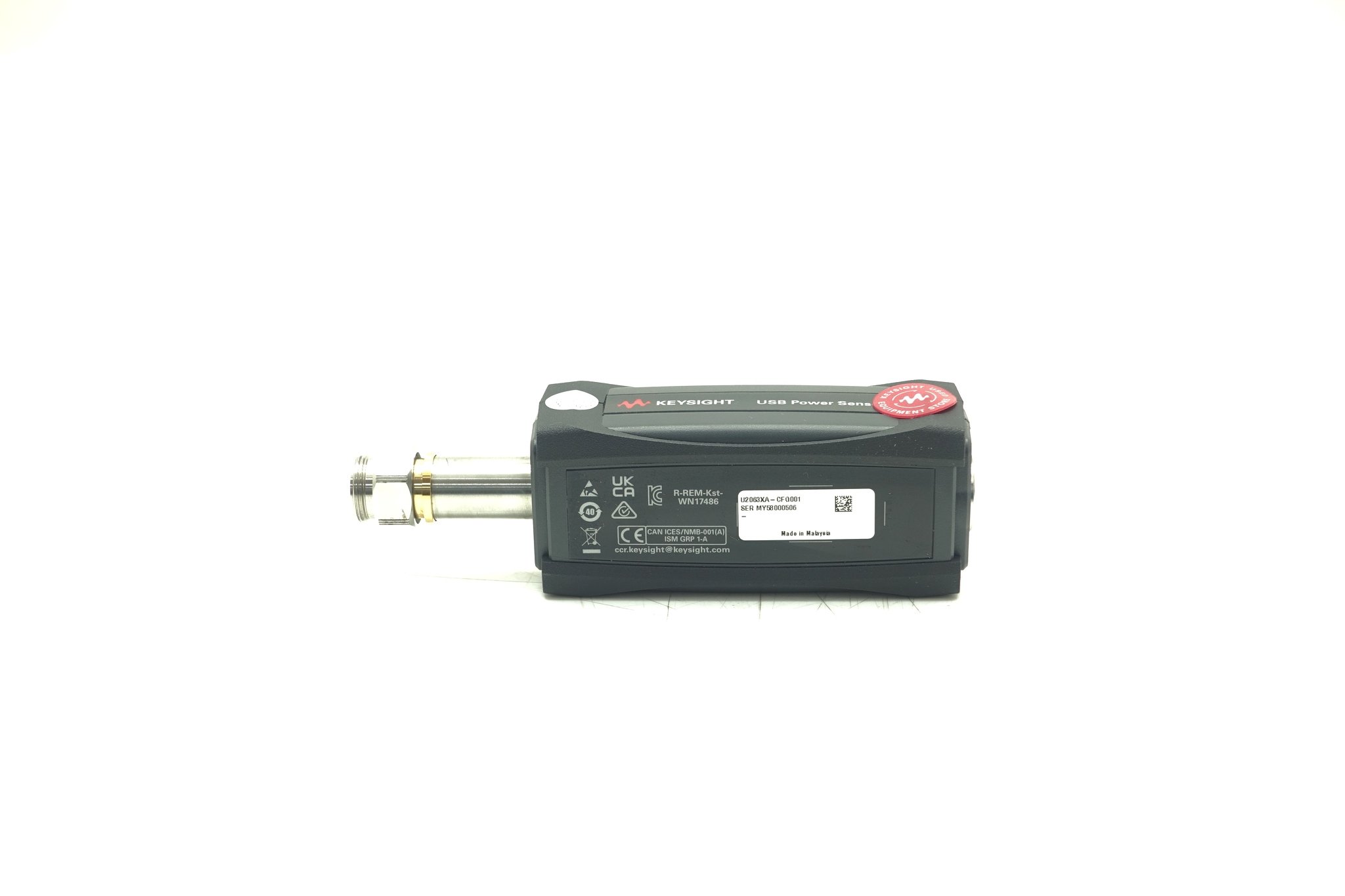

Accurately measure any modulated signal with the Keysight Technologies, Inc. U2040/53/63 & L2050/60 X-Series wide dynamic range power sensors. The USB/LAN connectivity models come with wide dynamic range, covering -70 to +26 dBm. This sensor offers very accurate and repeatable power measurements for any modulated signal and comes with super-fast measurement speed of 50,000 readings/sec, which enables higher manufacturing throughput. Users can also save time and reduce measurement uncertainty with the internal zero and calibration function.

The U2040/53/63 & L2050/60 X-Series is supported by the Keysight BenchVue software. BenchVue makes it easy to control your power meter to log data and visualize measurements in a wide array of display options without any programming. Simply connect the sensor to your PC installed BenchVue BV0007B Power Meter/Sensor Control and Analysis app to perform average power measurement and analysis.

• Keysight U2063XA Data sheet
• Keysight U2063XA User Manual

Accessories only included if shown in the pictures. No power cord included.

Other accessories that are not listed and included in the offer can be purchased separately at an extra cost with your purchase of a Keysight Used or Keysight Premium Used unit. Please specify in the comment field which additional accessories or support you are interested in.

For separate or post-purchase ordering, please contact your local Keysight office or Keysight Partner here. Or check our online store if available for your region here.
