Keysight now offers a family of higher-frequency attenuators for communications and aerospace applications. Combining low insertion loss with long life and excellent repeatability, these attenuators safeguard your test platform from failures, recalibration, downtime, and lost production.

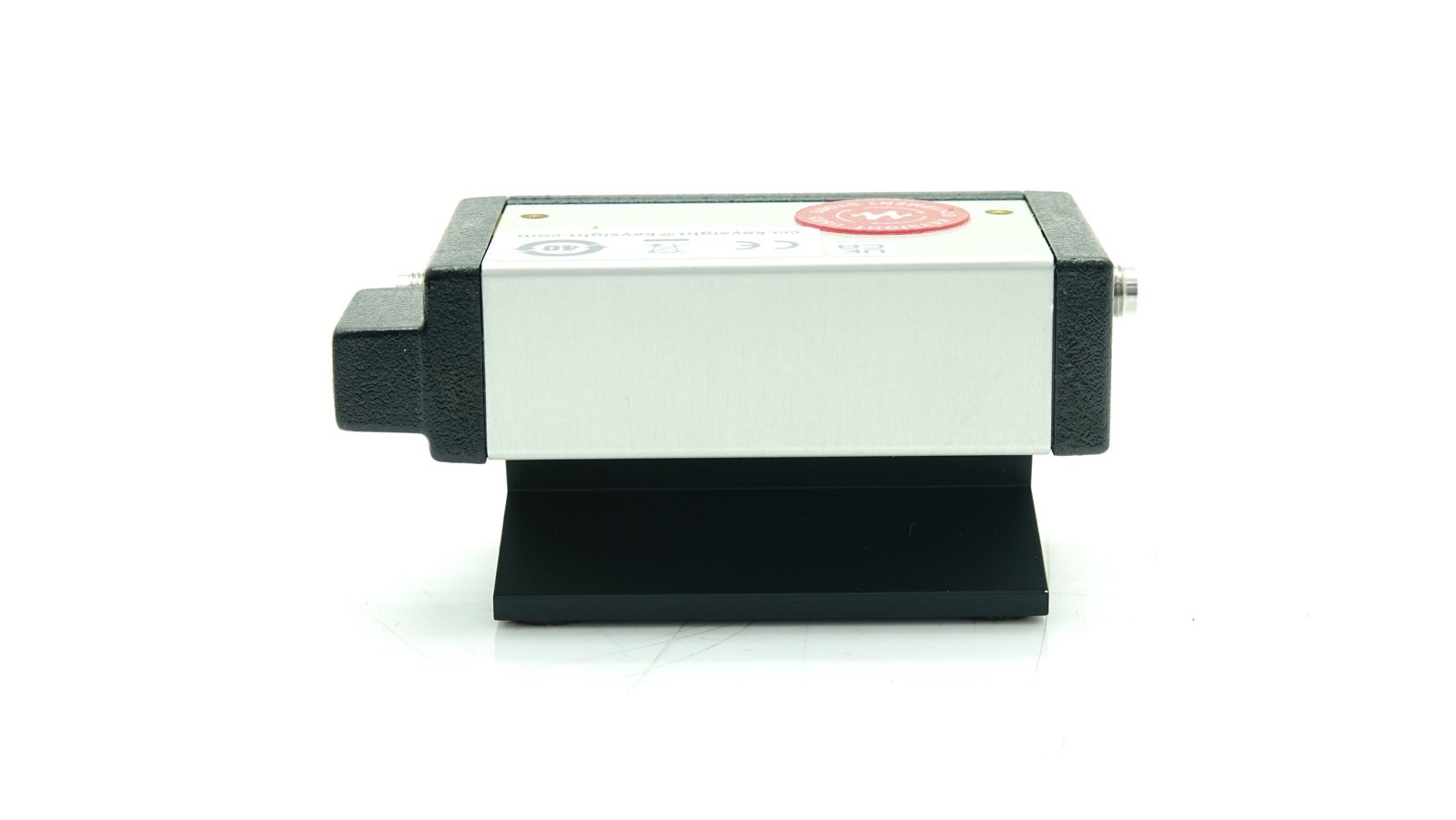

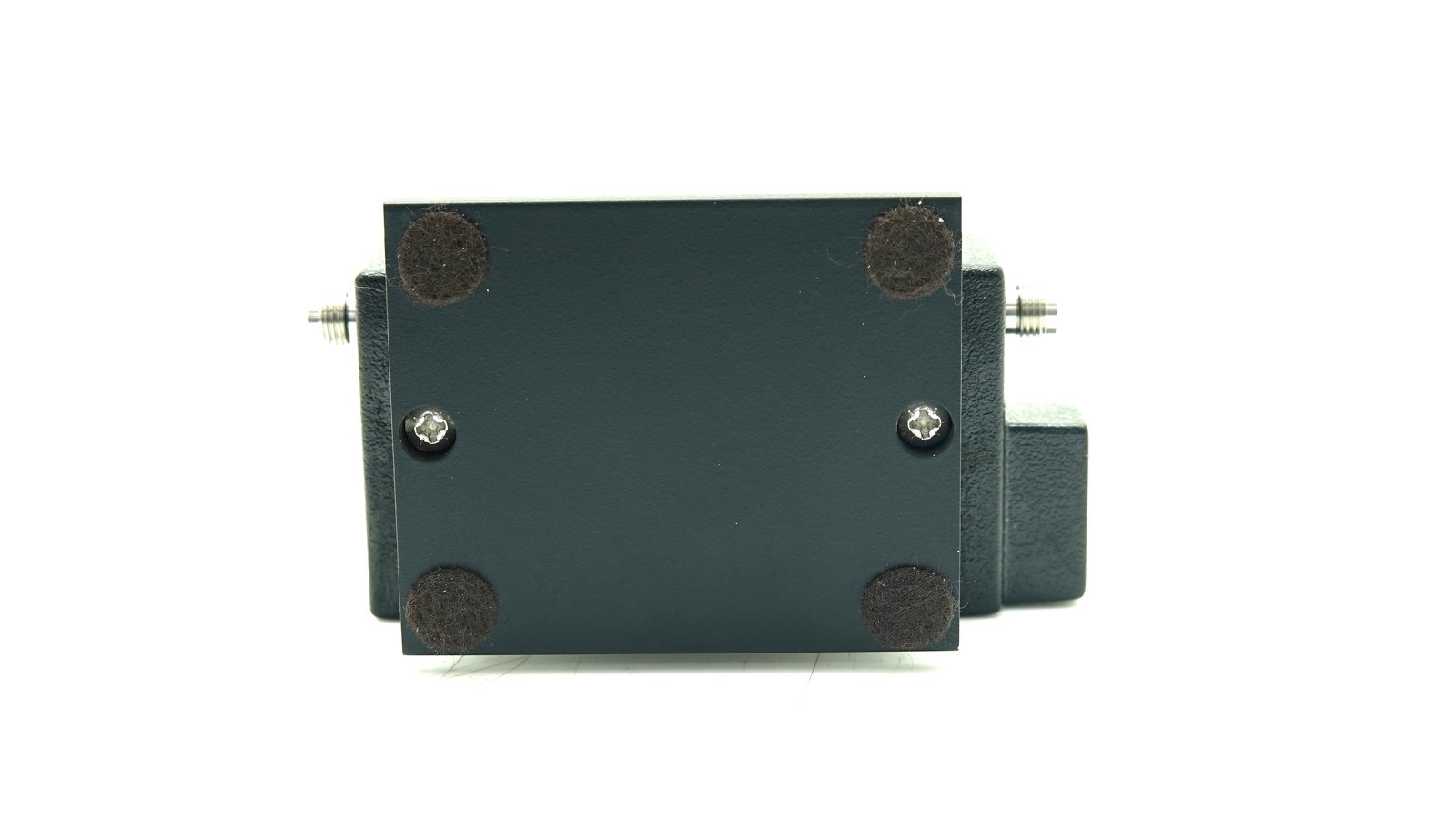

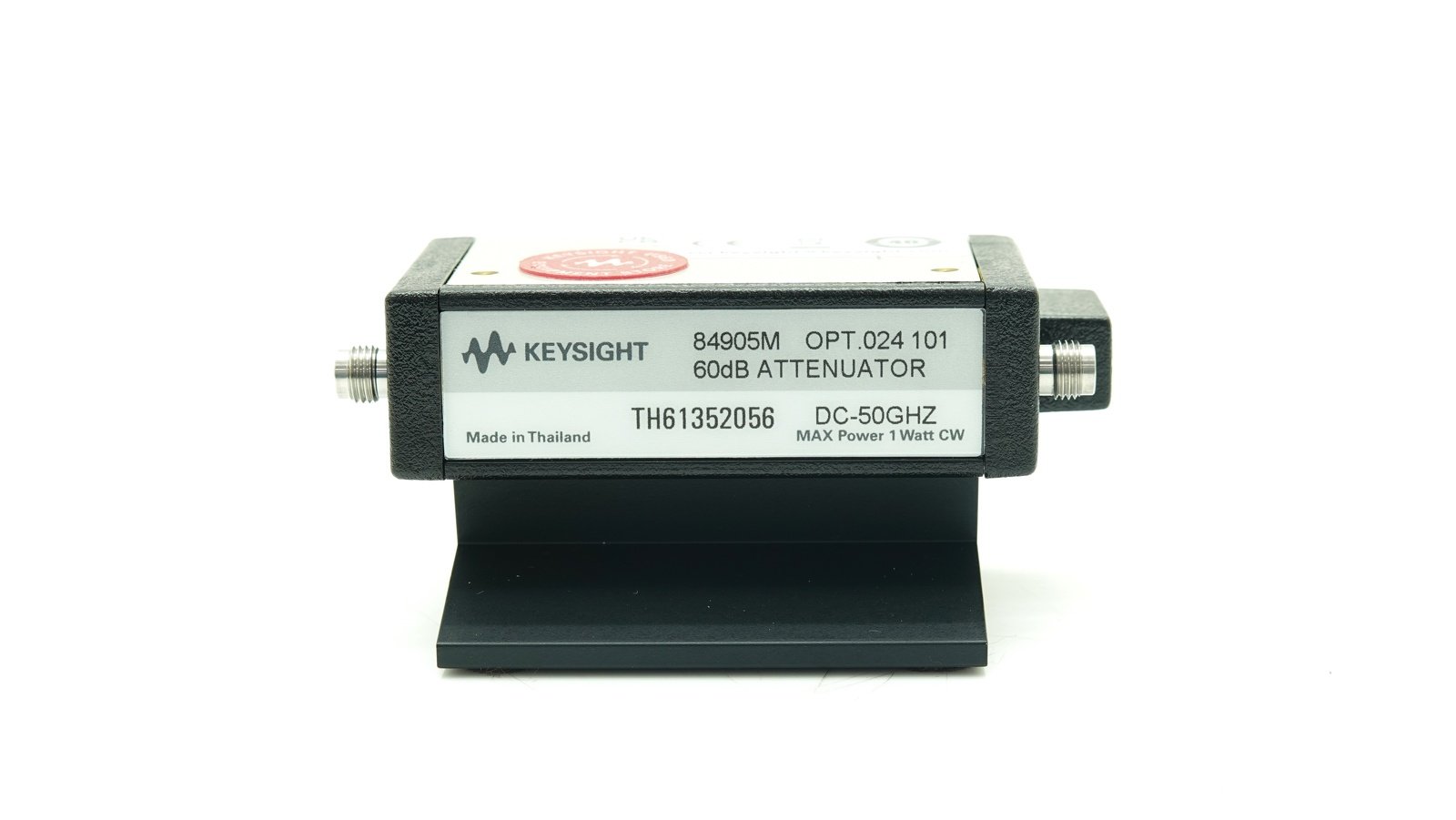

The Keysight 84905M is a programmable step attenuator with an attenuation range of 0 to 60 dB in 10 dB steps.

Superior RF Performance

• Frequency range: dc to 50 GHz
• Insertion loss at 0 dB: 0.6 dB + 0.03 dB/GHz (dc to 40 GHz), 2.6 (to 50 GHz)
• Maximum SWR: 1.25 to 12.4 GHz, 1.5 to 34 GHz, 1.7 to 40 GHz, 2.6 to 50 GHz

Repeatability and Life Span

• Repeatability life: 0.03 dB (typical)
• 5 million cycles per section

Power Handling

• Maximum RF input power: 1 W (average), 50 W (peak)

Features

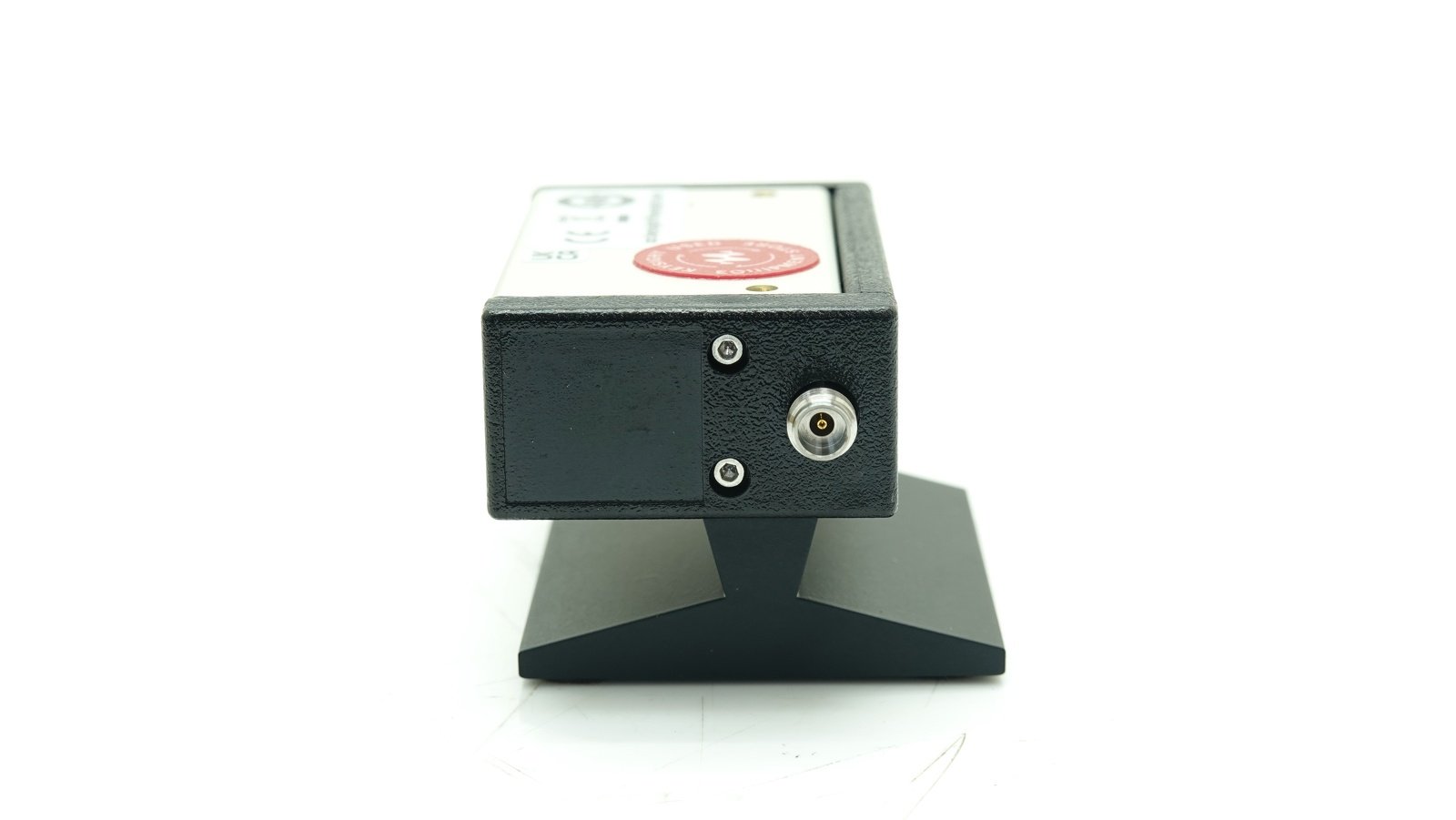

• Connector type: choice of 2.4 mm female, 2.4 mm male/female

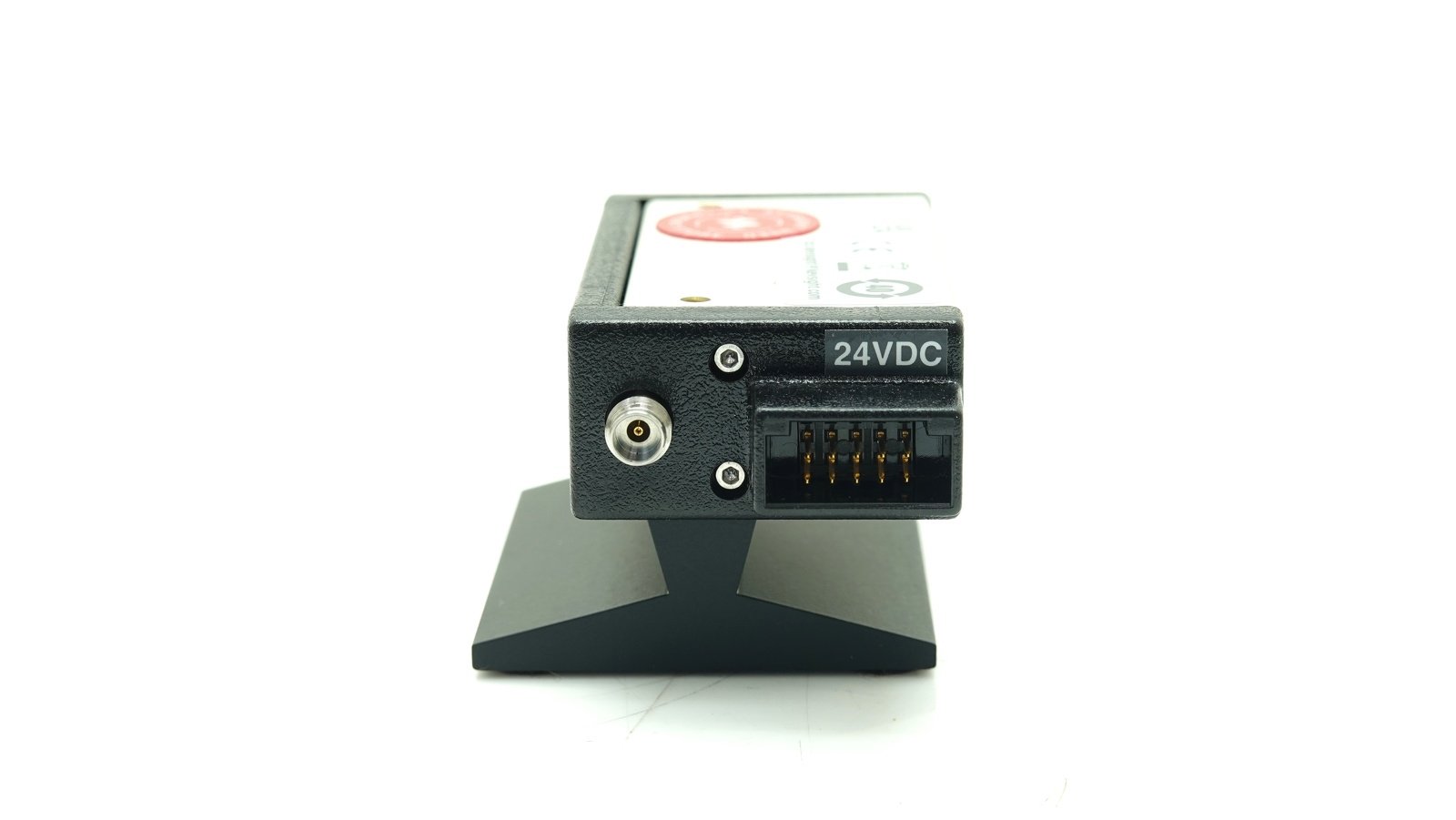

• Programming connector: 10-pin sockets

• Keysight 84905M Data sheet

Accessories only included if shown in the pictures. No power cord included.
